| Brand Name: | Vbrite |
| Model Number: | VB-M200CB |
| MOQ: | 10PCS |
| Delivery Time: | 10~15Day |
| Payment Terms: | L/C,T/T,D/A,D/P,Western Union |
High Lamp Luminous 100W,200W LED Street Module Ip66 Waterproof Street Light Module
Product Description

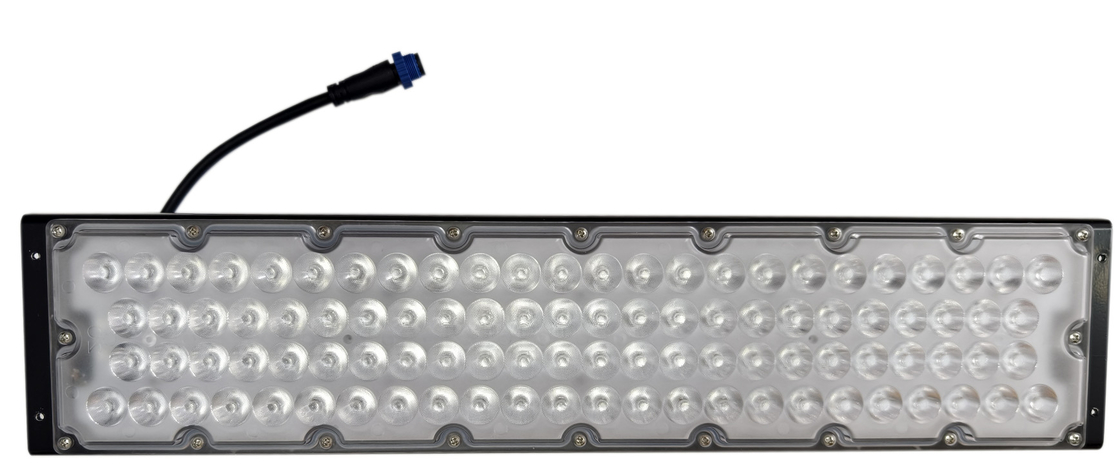

VB-M200CB LED module adopts SMD3030 chips with high efficiency and long life time. High quality aluminium heat sink and good structural design ensures good heat dissipation. Various beam angles suitable for different application place.
Specification
| Model | VB-M200CB | |
| Power | 200W | |
| Voltage | DC48V | DC48V |
| LED chip |
LED3030(252pcs) |
LED5050 (96pcs) |
| CCT | 3000K ~6000K | |
| CRI | > 70 ( >80, >90 optional ) | |
| Efficacy | 140m/w | 170m/w |
| Beam Type | 30°/ 60° | 20° /40°/60°/90° |
| IP Rating | IP66 | |
| Working Temp.(°C) | -40℃ ~50℃ , 20%~90% RH | |
| Storage Temp.(°C) | -40℃ ~50℃ , 10%~90% RH | |
| Lifetime | >50,000 hours | |
| Main Material | Aluminum + Optical PC | |
| Product Dimension | 548x121x90mm | |
