| Brand Name: | Vbrite |
| Model Number: | VB-SL35 |
| MOQ: | 10PCS |
| Delivery Time: | 10~15Day |
| Payment Terms: | L/C,T/T,D/A,D/P,Western Union |

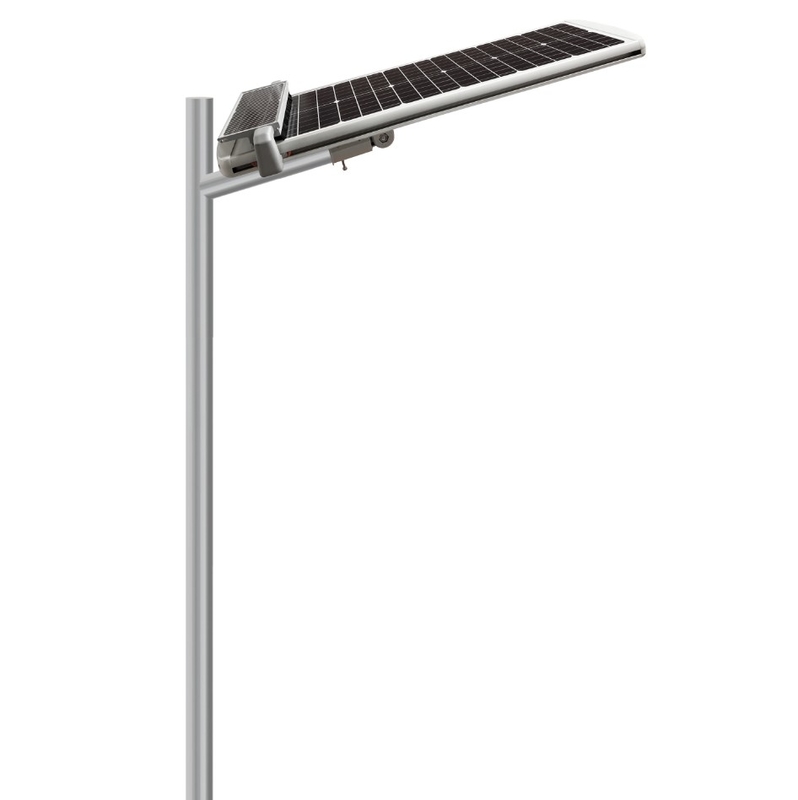

50w 80w 100w 8m Solar Street Light System Dusk To Dawn Integrated Led Solar Lights Outdoor Street
Product Description
LED solar street light is made of high-quality aluminum alloy and combined with advanced PMPM (high-efficiency photoelectric conversion) technology to provide a stable and long-lasting lighting solution. Designed for outdoor roads, courtyards, parking lots and other scenes, it is energy-saving and environmentally friendly, easy to install, and does not require complex wiring. It is an ideal choice for modern green lighting
Specification
| Model | VB-SL35 | ||||
| Power | 40W | 60W | 80W | 100W | |
| Solar panel | Max power | 6V60W (Monocrystalline silicon ) | 6V 80W (Monocrystalline silicon ) | 6V 100W (Monocrystalline silicon ) | 18V 120W (Monocrystalline silicon ) |
| Life span | 25 years | 25 years | 25 years | 25 years | |
| Battery Type | LiFePo4 battery 3.2V 75AH | LiFePo4 battery 3.2V 90Ah | LiFePo4 battery 3.2V 135Ah | LiFePo4 battery 3.2V 180Ah | |
| LED | Philips 5050 led chips with high brightness(56pcs) | Philips 5050 led chips with high brightness(84pcs) | Philips 5050 led chips with high brightness(112pcs) | Philips 5050 led chips with high brightness(140pcs) | |
| Efficacy | 200-210LM/W | 210-220LM/W | 210-220LM/W | 210-220LM/W | |
| Mounting height | Height:5-6m,Mounting distance:20-25m | Height:6-8m,Mounting distance:20-25m | Height:8-10m,Mounting distance:25-30m | Height:10-12m,Mounting distance:30-35m | |
| Pole | Pole upper Diamter:∮60-∮76mm | ||||
| Charging time | 5-6 hours (with enough strong shine) | ||||
| Working time | Full charged,12 hours per day,sustain 3-4 rainy days | ||||
| Working mode | Time control and light control | ||||
| Product size | 990*455*125mm | 1230*455*125mm | 1540*455*125mm | 1860*455*125mm | |
| N.W. | 13.4 KG | 16.95 KG | 19.05 KG | 22.35 KG | |
| Package size | 1220*480*155MM | 1450*480*155mm | 1770*480*155mm | 2080*480*155mm | |
| G.W. | 16 KG | 19.65 KG | 23.5 KG | 27.9 KG | |
| Warranty | 3 years | ||||
Application
This street light can be widely use in main roads, municipal squares highways, secondary roads internal city roads, sidewalks, bicycle lanes lighting etc.
