| Brand Name: | Vbrite |
| Model Number: | VB-U19 |
| MOQ: | 10PCS |
| Delivery Time: | 10~15Day |
| Payment Terms: | L/C,T/T,D/A,D/P,Western Union |
Warehouse Industrial Led High Bay Light 150w 200w 5 Years Warranty Factory Led High Bay Light
Product Description

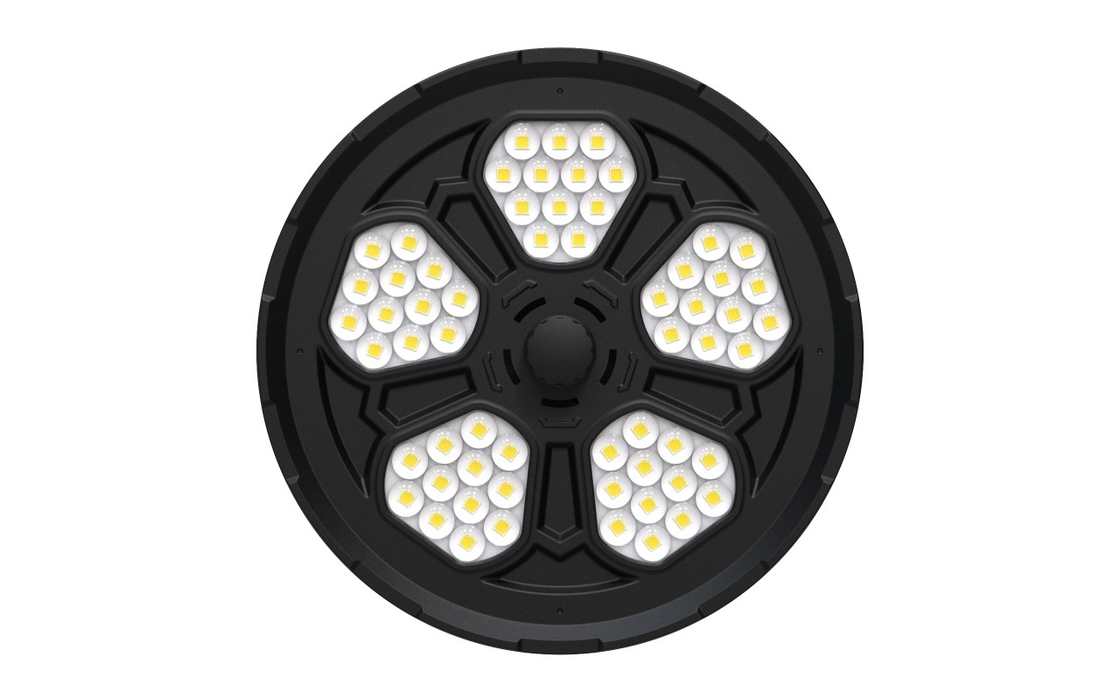

VB-U19 LED high bay light with diamond appearance. It adopts SMD7070 chips with high efficiency(150lm/w-210lm/w). Wattage from 100W to 300W optional. Various beam angles suitable for factories, warehouses. Multiple accessories optional can match different installation way
Specification
|
Model |
VB-U19-100 |
VB-U19-150 |
VB-U19-200 |
VB-U19-240 |
VB-U19-300 |
|
Power |
100W |
150W |
200W |
240W |
300W |
|
Input voltage |
AC100~277V, 50/60Hz |
||||
|
LED chip |
SMD7070 |
||||
|
CCT |
3000K/4000K/5000K/5700K/6500K |
||||
|
CRI |
Ra>70Standard,Ra>80 optional |
||||
|
Light Efficiency |
160-195LM/W |
160-195LM/W |
130-140LM/W |
160-195LM/W |
160-195LM/W |
|
Lumen Output |
16000-19500LM |
24000-29250LM |
26000-28000LM |
38400-46800LM |
48000-58500LM |
|
Beam angle |
60° / 90° |
||||
|
IP rating |
IP65 |
||||
|
Power factor |
0.9 |
||||
|
THD |
<20% |
||||
|
Ambient Temp.(°C) |
-40°C ~ 50°C |
||||
|
Storage Temp.(°C) |
-40°C ~ 60°C |
||||
|
Dimension |
Φ320*166mm |
Φ320*166mm |
Φ320*166mm |
Φ360*166mm |
Φ360*166mm |
Features
Application
Warehouse, Sport Space, Car Parts, Industrial Halls, Traffic Roads, Large Areas
