| Brand Name: | Vbrite |
| Model Number: | VB-WM512200 |
| MOQ: | 10PCS |
| Delivery Time: | 10~15Day |
| Payment Terms: | L/C,T/T,D/A,D/P,Western Union |
FEATURES
• Free-Maintenance

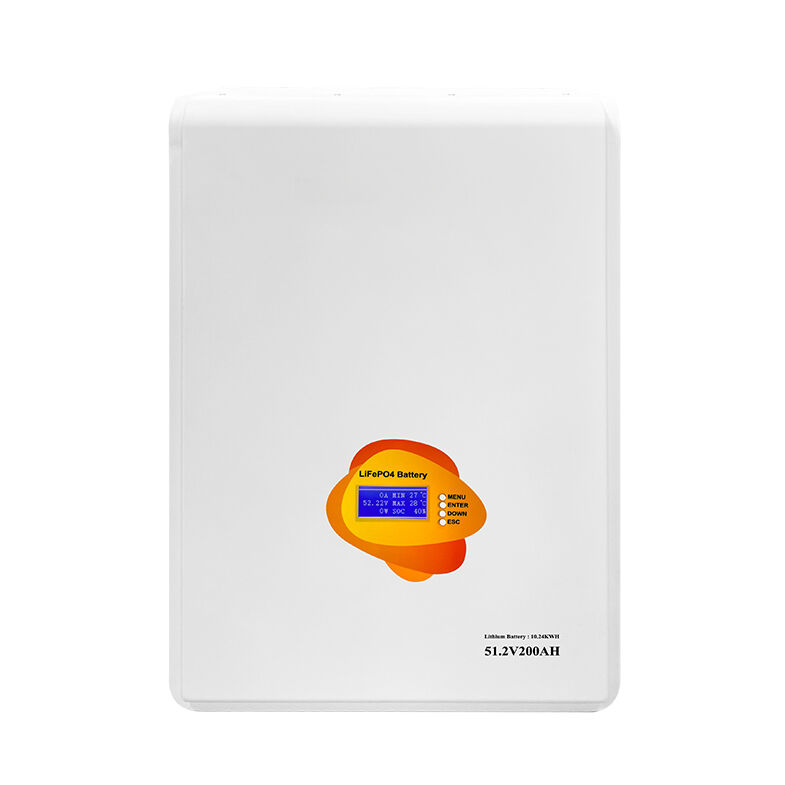

• Equipped With Battery Status Monitor
PARAMETER
|
MODEL
|
VB-WM512200
|
|
COMPREHENSIVE PARAMETERS
|
|
|
Battery Voltage
|
40V~58.4V
|
|
Storage Capacity
|
10240Wh
|
|
Colour
|
White
|
|
External Dimension
|
651.5*445*235mm
|
|
Warranty
|
5 Years
|
|
BATTERY MODULE PARAMETERS
|
|
|
Type of batter
|
LFE
|
|
Capacity
|
206Ah
|
|
Battery Cycle Life
|
6000
|
|
Modular Structure
|
1P16S
|
|
OVERALL CHARACTERISTIC
|
|
|
Capacity for assembled cell discharging by 0.2C
|
≥200Ah
|
|
Standard Charge Condition
|
Charge with 0.5C constant current and 58.4Vconstant voltage,
charge to 58.4V,continue charging till current declineto ≤0.01C
|
|
Maximum Charge Current
|
200A
|
|
Maximum Discharge Current
|
|
|
Internal Resistance
|
≤80mΩ Assemblage Impedance
|
|
Cycle Life
|
≥6000@25℃,80%EOL
|
|
Recommend Charging Temperature
|
0℃～50℃
|
|
Recommend Discharging Temperature
|
-15℃～50℃
|
|
Storage Temperature
|
|
|
Humidity
|
0-90%
|
|
Maximum Altitude
|
3000m
|
|
FUNCTIONAL CONFIGURATION
|
|
|
LED Panel (Light Emitting Diode)
|
YES
|
|
Communication
|
RS485,CAN,RS232
|
|
IP Rating
|
IP21
|
|
Parallel Capability
|
Up to 6 units
|
|
LED Power Display
|
Traffic Light Display
|
|
BMS Control
|
Control Battery Performance
|
|
PACKAGE
|
|
|
N.W.
|
116.1KGS
|
|
G.W.
|
138.5KGS
|
|
Package Size
|
725*520*310mm (Carton)；735*530*325mm (UN Wooden)
|
DIMENSION
CAUTIONS
DIAGRAM OF CURVES
PRODUCTION
APPLICATION & CASE
