| Brand Name: | Vbrite |
| Model Number: | VB-M09 |
| MOQ: | 10PCS |
| Delivery Time: | 10~15Day |
| Payment Terms: | L/C,T/T,D/A,D/P,Western Union |

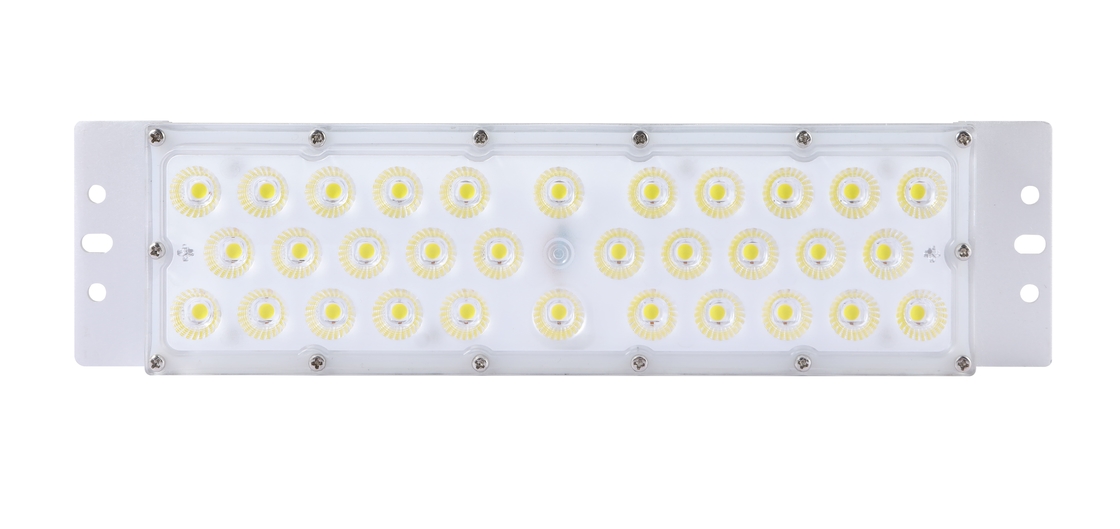

High Brightness LED Chip Lumildes 5050 Outdoor Street LED Module
Product Description
Equipped with 32pcs 5050 LEDs, the VB-M09 offers high brightness and durability. It features strong heat dissipation and flexible beam angles for various applications.
Specification
| Model | VB-M09-60 | |
| Power | 60W | |
| Driving Current | 1.25A | |
| Voltage | DC42-48V | |
| LED chip | Customized 5050 | |
| CCT | 3000K ~5700K | |
| CRI | > 70 | |
| Efficacy | 185~210lm/w | |
| Beam Type | 20° / 40° / 60° / 90° /150x70° | |
| Lens Dimension | 250x75mm | |
| IP Rating | IP66 | |
| Working Temp.(°C) | -40℃ ~50℃, 20%~90% RH | |
| Storage Temp.(°C) | -40℃ ~50℃, 10~90% RH | |
| Lifetime | >50,000 hours | |
| Main Material | Aluminum6063 + Optical PC | |
| Product Dimension | 300x75x50mm | |
| Carton | 425x350x455mm, 40pcs/CTN | |
| N.W.(KG) | 0.52KG/PCS | |
| G.W.(KG) | 25.5KG/CNT | |
Features
