| Brand Name: | Vbrite |
| Model Number: | VB-M26 |
| MOQ: | 10PCS |
| Delivery Time: | 10~15Day |
| Payment Terms: | L/C,T/T,D/A,D/P,Western Union |

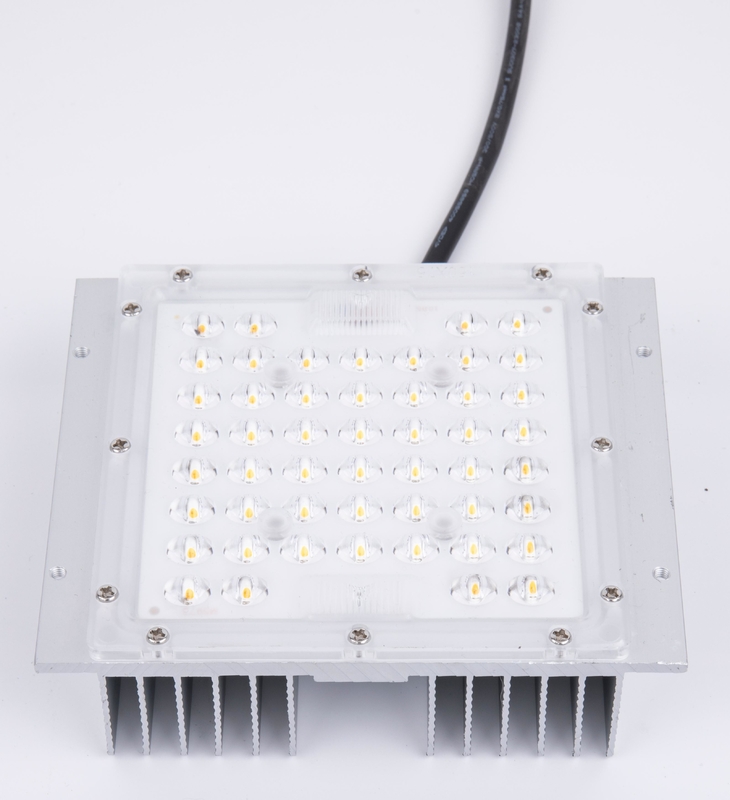

Power Guard IP66 Graden Lamp Led Module Courtyard Light Module
Product Description
VB-M26 series is a high-performance LED module designed for harsh industrial environments, providing five power options of 30W/40W/50W/60W/80W. It provides high-quality 5050 and 3030 chip options, 5050 large chip solution single chip 0.5W, luminous efficiency up to 145lm/W, suitable for high power, 3030 high-density solution single chip 0.3W, to achieve a more uniform light field distribution. It is required to be equipped with IP66 protection level, fully sealed die-cast aluminum housing and tempered glass lens, and 5-year long warranty service.
Specification
| Model | VB-M26 | |||
| Power | 30W | 50W | 60W | 70~80W |
| LED chip | SMD3030(30PCS) |
SMD 3030 SMD 5050 (optional) |
SMD 3030 SMD 5050 (optional) |
SMD3030 |
| Product Dimension |
100.4*84.5*39mm |
146*121.3*38mm |
146*121.3*38mm |
176*160*46mm |
| Input voltage | DC30V | |||
| CCT | 3000K/4000K/5000K/6000K/6500K | |||
| CRI | Ra>70/80 | |||
| Efficiency | 140LM/W |
140LM/W(3030) 160-170LM/W(5050) |
140LM/W(3030) 160-170LM/W(5050) |
140LM/W |
| Lumen flux | 4200lm |
7000lm(3030) 8000~8500lm(5050) |
8400lm(3030) 9600~10200lm(5050) |
11200lm |
| Beam angle |
150*75º,90º |
150*75º |
150*75º |
70x145º |
| IP rating | IP66 | |||
|
Ambient Temp.(°C) |
-40℃~50℃,20%~90 R.H |
|||
|
Storage Temp.(°C) |
-40℃~50℃,10%~90% R.H. |
|||
|
Lifetime |
50,000 hours | |||
|
Body material |
Aluminum+Optical PC | |||
|
Warranty |
5Years | |||
Features
Advantage
Application
Courtyard lamp, Retrofit bulb, Graden lamp, lawn lamp.
