| Brand Name: | Vbrite |
| Model Number: | VB-M21 |
| MOQ: | 10PCS |
| Delivery Time: | 10~15Day |
| Payment Terms: | L/C,T/T,D/A,D/P,Western Union |

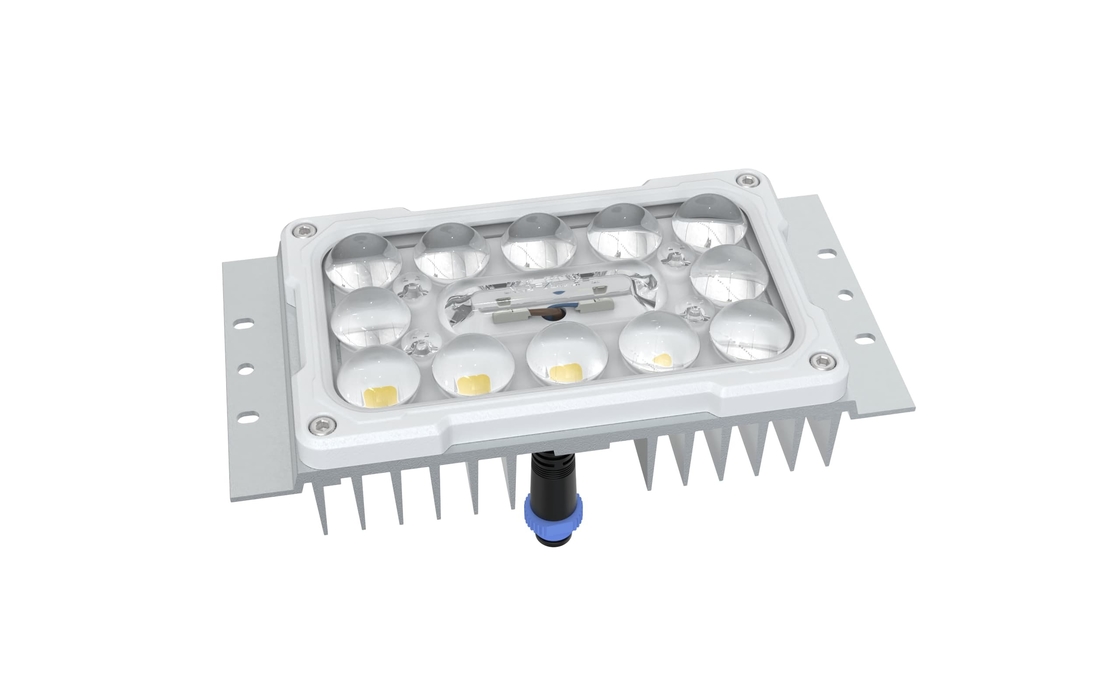

Outdoor SMD7070 LED Lenses Module IP67 Waterproof LED Street Light Module
Product Description
VB-M21 series of LED modules uses 7070 high-power chips, provides 10W~50W power options, and supports five beam angles of 35°, 45°, 60°, 90°, and 120° to meet different lighting needs. With IP67 high protection level, dustproof and waterproof, it is suitable for a variety of harsh environments indoors and outdoors, and is widely used in commercial lighting, industrial lighting, landscape lighting and other fields.
Specification
| Model | VB-M21 | |
| Power | 10~50W | |
| Input Voltage | DC50~52V | |
| LED chip | SMD7070(10PCS) | SDM7070(12PCS) |
| CCT | 2700K~5700K | |
| CRI | Ra>70(>80,>90potional) | |
| Efficiency | 180~210LM/W | 190~220LM/W |
| Lumen flux (±5%) | 1800~10500LM | 190~220LM/W |
| Beam angle |
145°X85° / 140°X80° / 150°X85° 150°X55°/155°X75°/155°X100° 120°X75° |
35°/45°/60°/90°/120° |
| IP rating | IP67 | |
| Ambient Temp.(°C) | -40℃~50℃ , 20%~90% H.R | |
| Storage Temp.(°C) | -40℃~55℃10%~90% H.R. | |
| Lifetime | >50,000 hours | |
| Body material | ADC Die-casting aluminum | |
| N.W.(per pcs) | 750g | |
| Carton size(mm) | 310*210*130mm (6pcs/ctn) | |
Features
Professional optical glass lens design, higher light output and more precise direction
Die-casting aluminum heat sink.
Application
This module can be widely use in high bay lighting (warehouse, workshop), flood lighting (square,road, dock,fishing boat, gas station) etc.
