| Brand Name: | Vbrite |
| Model Number: | VB-M35 |
| MOQ: | 10PCS |
| Delivery Time: | 10~15Day |
| Payment Terms: | L/C,T/T,D/A,D/P,Western Union |

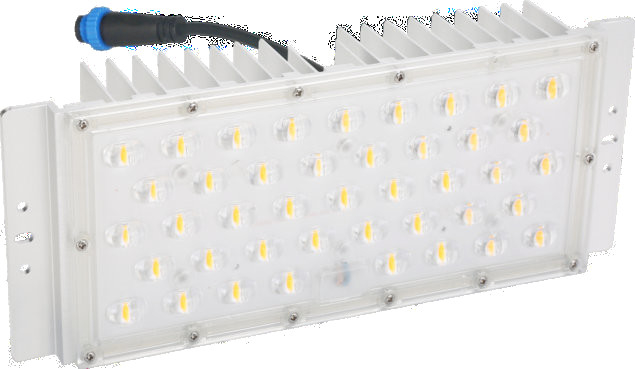

50~100W LED Module For LED Street Light
Product Description
VB-M35 LED module uses a 5050 high-power chip with a VC42 constant current driver solution, providing a wide power range of 50W-100W, suitable for outdoor and industrial lighting scenarios. With an IP66 waterproof and dustproof rating, it can operate stably in harsh environments, with a light efficiency of up to 180-200LM/W, taking into account both high brightness and energy-saving requirements, and is an ideal choice for advertising lighting, building floodlighting, warehouses, mining and other applications.
Specification
| Model | VB-M35 | ||||
| Power | 50W | 60W | 70W | 80W | 100W |
| Input Current | 1.16A~2.2A | ||||
| Voltage | DC42-48V | ||||
| LED chip | Lumileds 5050/Customized 5050 | ||||
| CCT | 3000K/4000K/5000K/5700/6000K | ||||
| CRI | >70(>80, >90 optional) | ||||
| Efficacy | 200lm/W | 195lm/W | 190lm/W | 185lm/W | 180lm/W |
| Beam angle | 125*50°/145*100°/150*70°/Type II-M / III / IV / V | ||||
| IP rating | IP66 | ||||
| Working Temp.(°C) | -40℃~50℃ , 20%~90% RH | ||||
| Storage Temp.(°C) | -40℃~50℃ , 10%~90% RH | ||||
| Lifetime | >50,000 hours | ||||
| Main Material | Aluminum6063 + Optical PC | ||||
| Product Dimension | 300x120x58mm | ||||
| Carton | 385x335x288mm | ||||
| N.W.(KG) | 1KG/PCS | ||||
Features
Application
Road, Mo-torway, Urban Resi-dential Street, Bike, Sidewalk paths, Public squares, Sidewalk Street, Parking, Bridges, Industrial areas, Stadium lighting
