| Brand Name: | Vbrite |
| Model Number: | VB-M09 |
| MOQ: | 10PCS |
| Delivery Time: | 10~15Day |
| Payment Terms: | L/C,T/T,D/A,D/P,Western Union |

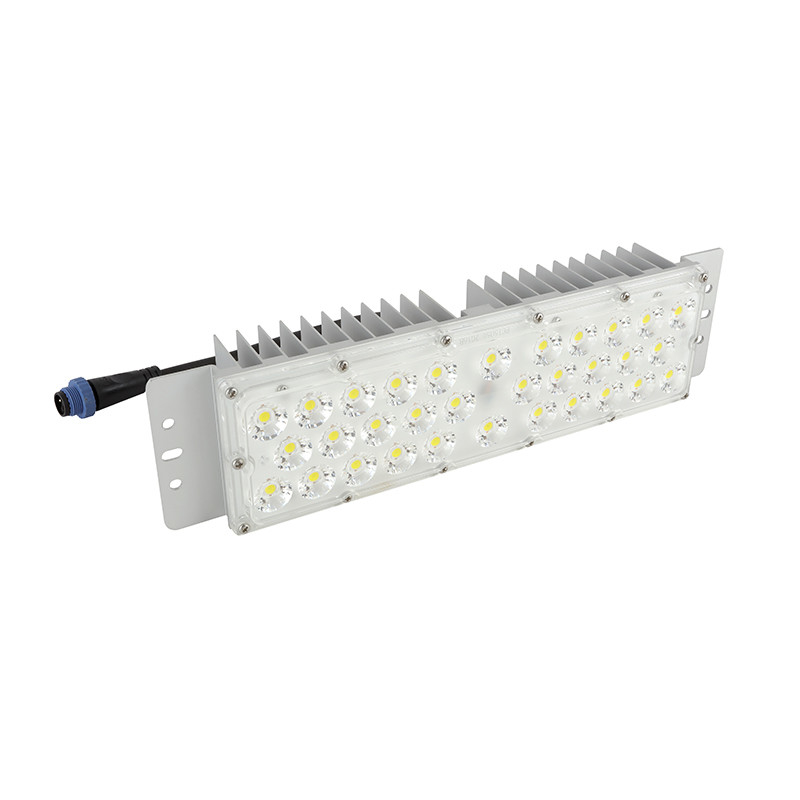

High Lamp Luminous Efficiency 220lm/W LED Module Ip68 Waterproof Street Light Module
Product Description
The module adopts a flexible design with a variety of angles to choose . Easy installation, greatly saving construction time. It has a high color rendering index (CRI>90), soft and comfortable light, and effectively protects eyesight. The outdoor model is IP67 waterproof and dustproof, fearless of wind and rain, suitable for advertising light boxes, building outline lighting and other scenarios; whether it is home audio-visual entertainment, store atmosphere creation, or large-scale project lighting, this LED module can provide efficient, energy-saving, and intelligent lighting solutions.
Specification
| Model | VB-M09-40 | |
| Power | 40W | |
| Driving Current | 0.84A | |
| Voltage | DC42-48V | |
| LED chip | SMD 5050 | |
| CCT | 4000K / 5000K / 5700K | |
| CRI | > 70 ( >80, >90 optional ) | |
| Efficacy | 205lm/w | |
| Lumen Flux | 8200lm | |
| Beam Type | 20° / 40° / 60° / 90° /150x70° | |
| Lens Dimension | 250x75mm | |
| IP Rating | IP66 | |
| Working Temp.(°C) | -40℃ ~50℃, 20%~90% RH | |
| Storage Temp.(°C) | -40℃ ~50℃, 10~90% RH | |
| Lifetime | >50,000 hours | |
| Main Material | Aluminum6063 + Optical PC | |
| Product Dimension | 300x75x50mm | |
| Carton | 425x350x455mm, 40pcs/CTN | |
| N.W.(KG) | 0.52KG/PCS | |
| G.W.(KG) | 25.5KG/CNT | |
