| Brand Name: | Vbrite |
| Model Number: | VB-M09 |
| MOQ: | 10PCS |
| Delivery Time: | 10~15Day |
| Payment Terms: | L/C,T/T,D/A,D/P,Western Union |

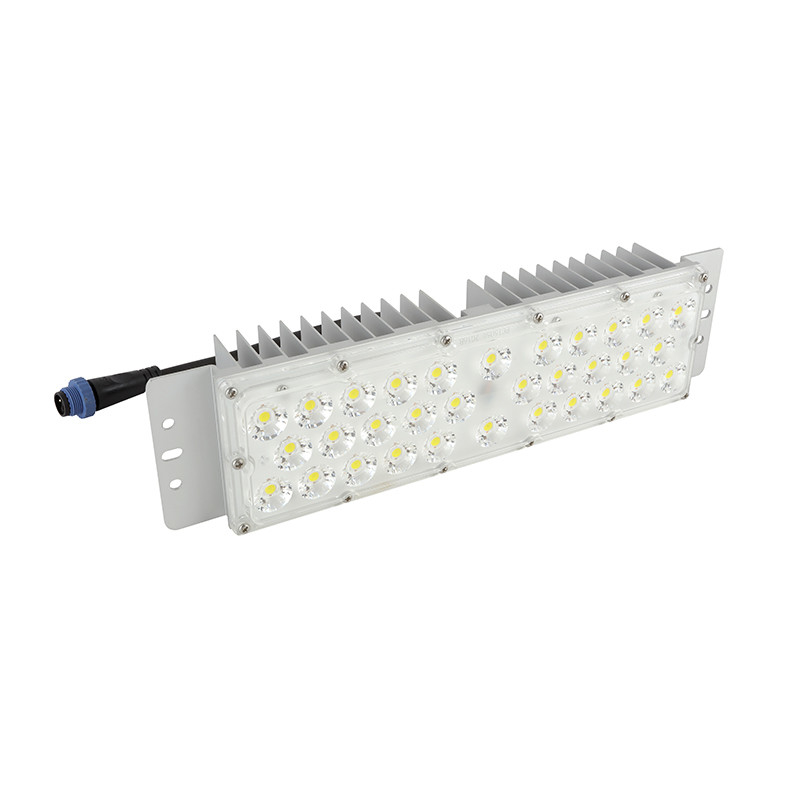

60 Watt Led Street Light Source Led Module Lights Module Led 50w Street Lamp Led Module
Product Description
VB-M09 LED module adopts 32pcs 5050 chips with high efficiency and long life time. High quality aluminium heat sink and good structural design ensures good heat dissipation. Various beam angles suitable for different application place.
Specification
| Model | VB-M09-30 |
| Power | 30W |
| Driving Current | 0.63A |
| Voltage | DC42-48V |
| LED chip | Domestic 5050 |
| CCT | 3000K / 4000K / 5000K |
| CRI | > 70 ( >80, >90 optional ) |
| Efficacy | 180~215lm/w |
| Lumen Flux | 6450lm |
| Beam Type | 20° / 40° / 60° / 90° /150x70° |
| Lens Dimension | 250x75mm |
| IP Rating | IP66 |
| Working Temp.(°C) | -40℃ ~50℃, 20%~90% RH |
| Storage Temp.(°C) | -40℃ ~50℃, 10~90% RH |
| Lifetime | >50,000 hours |
| Main Material | Aluminum6063 + Optical PC |
| Product Dimension | 300x75x50mm |
| Carton | 425x350x455mm, 40pcs/CTN |
| N.W.(KG) | 0.52KG/PCS |
| G.W.(KG) | 25.5KG/CNT |
